Among the smallest of systems we review is a line from iKoolCore. The iKoolCore R2 is the newest in this line with a processor that is more than twice the speed of the previous generation. With that new CPU, we get more performance and connectivity and so the system has tweaked its capabilities as well, although it retains 4x 2.5GbE ports. Let us get into this little system and see how it fares.
iKoolCore R2 Overview
As one might imagine, we have a video for this one as well. You can find that video here.
In the video, we always get to show more angles of the hardware, and you can see the power consumption live on the new set. As always, we suggest opening the video in its own tab, browser, or app for the best viewing experience.
These units commence at approximately $239 for an Intel N95 (4-core) with 8GB of RAM and absent SSD. (Amazon Affiliate link.) The model that iKoolCore sent us is the Core i3-N300 16GB variant, which is considerably costlier at $379 without an SSD. Personally, I find the Core i3-N300 rather appealing, but there are individuals who prefer lesser cores, and the N95 price tag is more enticing for them.
However, these minute systems never fail to provide amusement to observe, and this instance is no exception. Let us delve into the hardware and some of the substantial updates incorporated into this generation.
iKoolCore R2 Pro External Hardware Examination
The iKoolCore R2 is fitted with two USB 3 Type-A ports at the front, together with a power button. The port on the right supports a 5Gbps connection, whereas the left port backs a 10Gbps connection. It would be pleasant if this information was labeled on the chassis.
Here is the angled view.
On the other side, we get a USB Type-C port that can power a display as well. The other Type-C port is actually an audio jack.
In the R1 / R1 Pro that audio jack was a TF slot instead. Just to us, the TF card for a router/ firewall box feels more useful.
For those looking at this as a desktop, the R2’s setup may seem more useful. A part of us wishes, however, that this was just a combo jack as we see on other mini PCs instead of also trying to adopt Type-C.

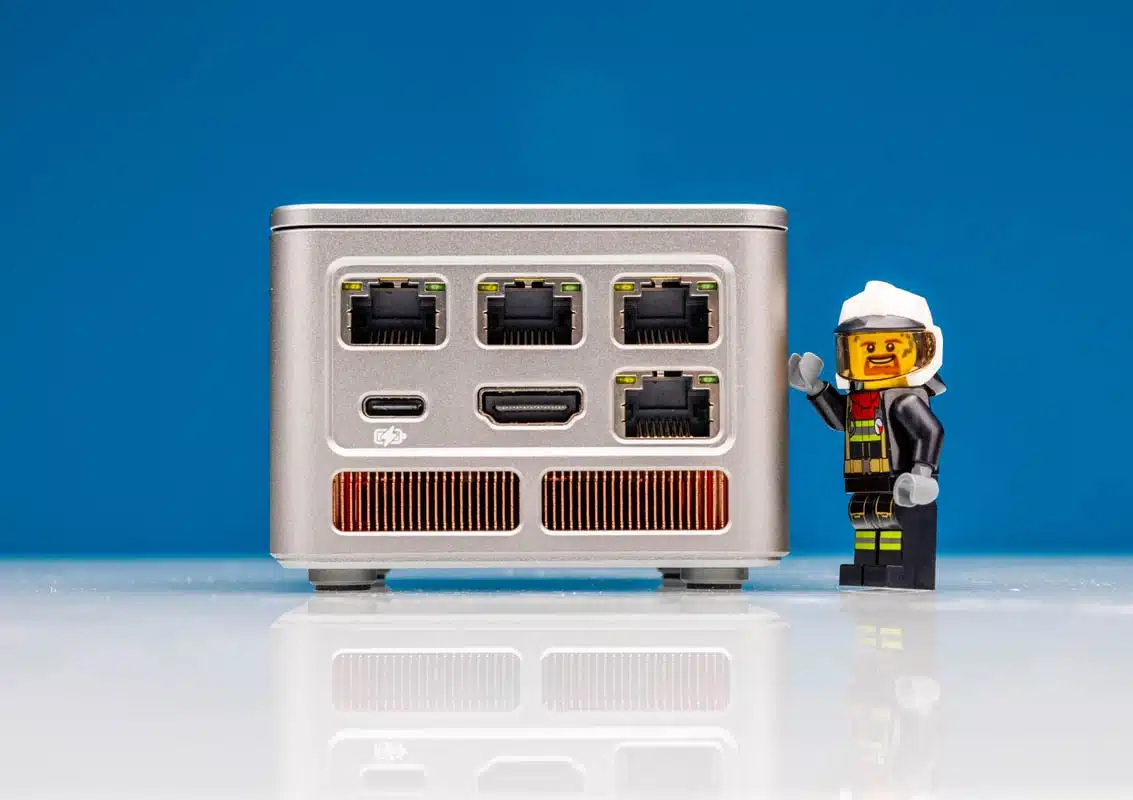

The main aspect undoubtedly includes the HDMI, Type-C power input, and three Intel i226-V network ports. Interestingly, the fourth port (the top right one in this view) happens to be a built-in Realtek USB 3 to 2.5GbE adapter functioning as a fourth NIC. While some may contend that it enhances compatibility as it incorporates a USB NIC solution onboard, others argue that an Intel i226-V PCIe NIC is a superior solution.
We now have a new name badge.
The R2 branding now also appears on the top.
Flipping to the bottom, we see the addition of new raised rubber feet and the cooler.
Overall, this is like a R1 Pro chassis, but with a newer system underneath. On that note, it is time to get inside the system.
